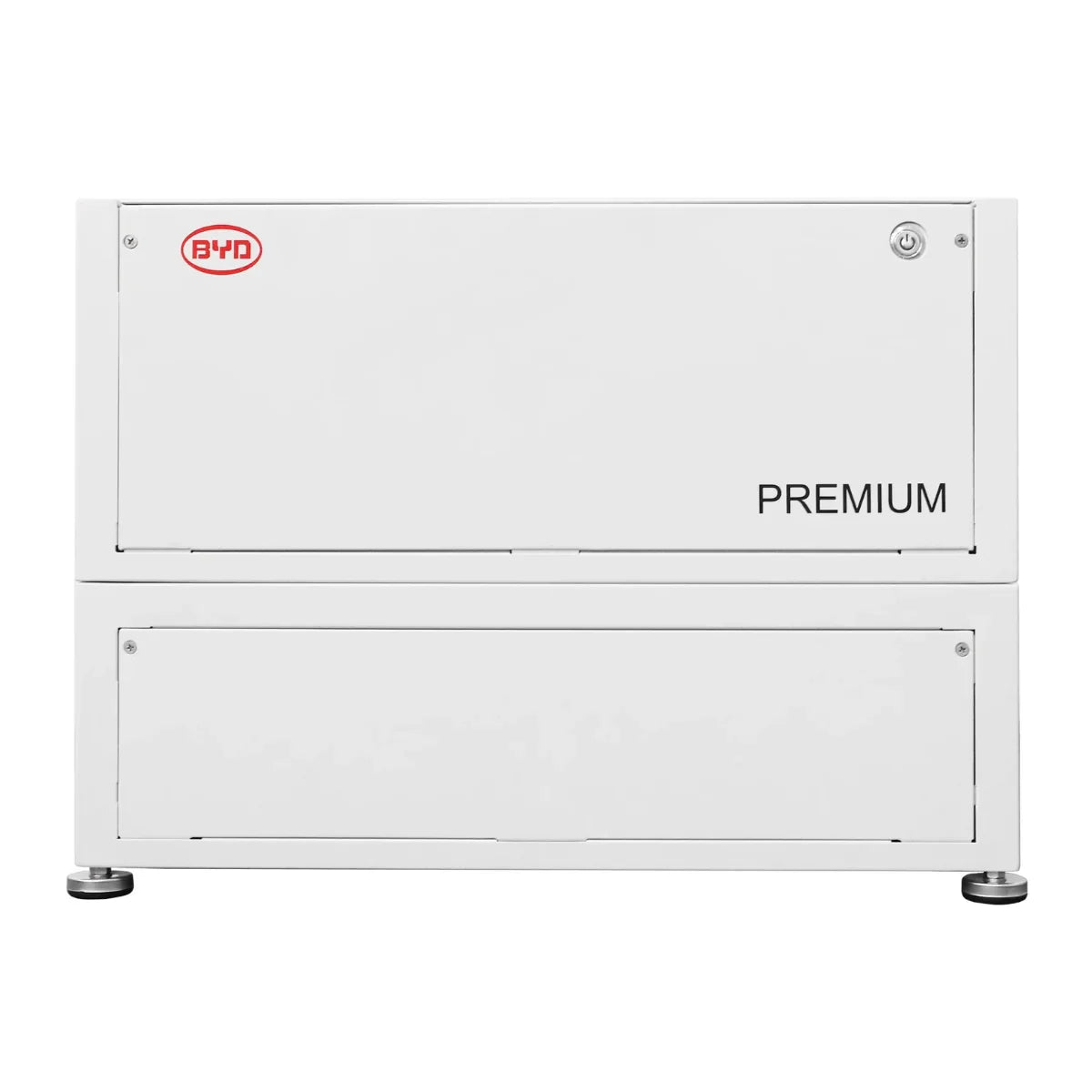

BYD 15.4 kWh 48V Premium LVL Lithium Battery Box

R 90,000.00 ZAR
R 90,000.00 ZAR
Tax included. Shipping calculated at checkout.

Free Shipping & Returns: On all orders

I agree with Terms & Conditions
Wishlist
Compare
Share

Share:

  • Pinterest
  • Instagram
  • Facebook
  • Twitter
https://allforsolar.com/pro...
Thanks! We will send you a notification when the variant becomes available!
Vendor:
Aysa Hardware
Availability:
In stock
Category:
BYD 15.4 kWh 48V Premium LVL Lithium Battery Box

BYD 15.4 kWh 48V Premium LVL Lithium Battery Box
R 90,000.00 ZAR
R 90,000.00 ZAR

Features

  • Scalable from 15.4 to 983 kWh.
  • Compatible with 1 and 3 Phase Inverters.
  • Cobalt Free Lithium Iron Phosphate (LFP) Battery: Maximum Safety, Life.
  • Cycle, and Power.
  • Capable of High-Powered Back-up and Off-Grid Function.
  • Space Saving via the Ability to Stack 2 Premium Batteries.
  • Add Additional Batteries in Parallel to Expand the System.

Specifications - LVL15.4

  • Number of Modules: 2.
  • Usable Energy: 15.36 kWh.
  • Max Cont. Output Current: 250 A.
  • Peak Output Current: 375 A, 5 s.
  • Dimensions (H/W/D): 500 x 575 x 650 mm.
  • Weight: 164 kg.
  • Nominal Voltage: 51.2 V.
  • Operating Voltage: 40-59 V.
  • Operating Temperature: -10 °C to +50°C.
  • Battery Cell Technology: Lithium Iron Phosphate (cobalt-free).
  • Communication: CAN/RS485.
  • Enclosure Protection Rating: IP20.
  • Round-trip Efficiency: ≥95%.
  • Scalability: Max. 64 in Parallel (983 kWh).
  • Certification: IEC62619 / CE / CEC / UN38.3.
  • Applications: ON Grid / ON Grid + Backup / OFF Grid.
  • Warranty: 10 Years.
  • Compatible Inverters: Refer to BYD Battery-Box Premium Inverter Compatible List and Minimum Configuration List.
