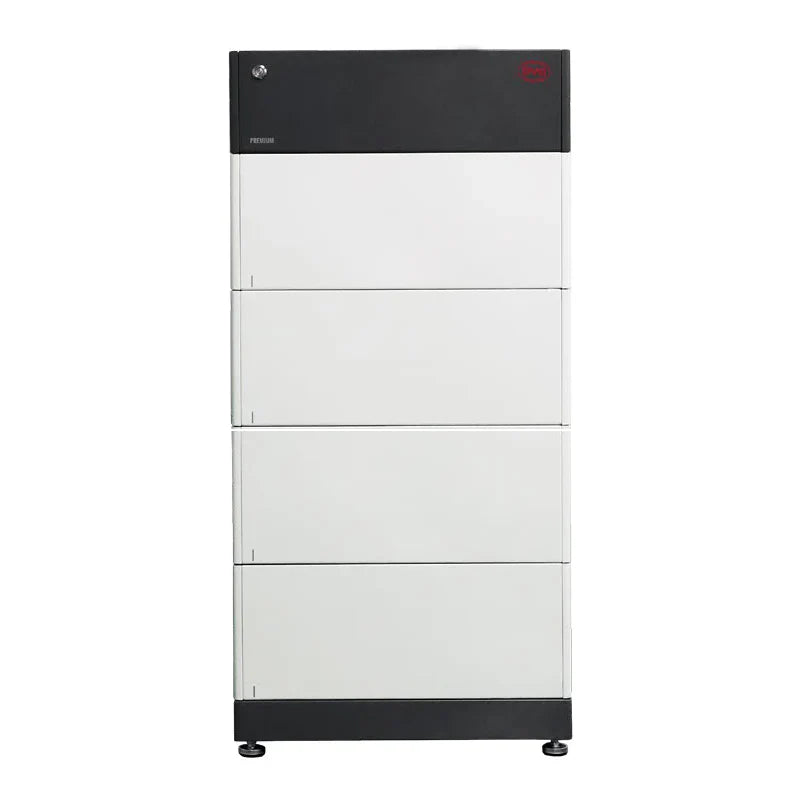

BYD HVS 10.2 10.24 kWh 409V HV Lithium Battery

BYD HVS 10.2 10.24 kWh 409V HV Lithium Battery
R 125,000.00 ZAR
R 125,000.00 ZAR

Benifits

  • Capable of High-Powered Emergency-Backup and Off-Grid Functionality.
  • Highest Efficiency Thanks to a Real High-Voltage Series Connection.
  • The Patented Modular Plug Design Requires no Internal Wiring and Allows for Maximum Flexibility and Ease of Use.
  • Cobalt Free Lithium Iron Phosphate (LFP) Battery: Maximum Safety, Life Cycle, and Power.
  • Compatible with Leading 1 and 3 Phase High Voltage Battery Inverters.
  • Two Distinct Modules to Cover the Complete Range of System Sizes.
  • Highest Safety Standards like VDE 2510-50.

Technical Parameters HVS 10.2

  • Battery Module HVS: (2.56 kWh, 102.4 V, 38 kg).
  • Number of Modules: 4.
  • Usable Energy: 10.24 kWh.
  • Max Output Current: 25 A.
  • Peak Output Current: 50 A.
  • Nominal Voltage: 409 V.
  • Operating Voltage: 320~460 V.
  • Dimensions (H/W/D) 1178mm x 585mm x 298mm.
  • Weight: 167 kg.

General Information

  • Operating Temperature: -10 °C to +50°C.
  • Battery Cell Technology: Lithium Iron Phosphate (cobalt-free).
  • Communication: CAN/RS485.
  • Enclosure Protection Rating: IP55.
  • Round-trip Efficiency: ≥96%.
  • Certification: VDE2510-50 / IEC62619 / CEC / CE / UN38.3.
  • Applications: ON Grid / ON Grid + Backup / OFF Grid.
  • Warranty: 10 Years.
