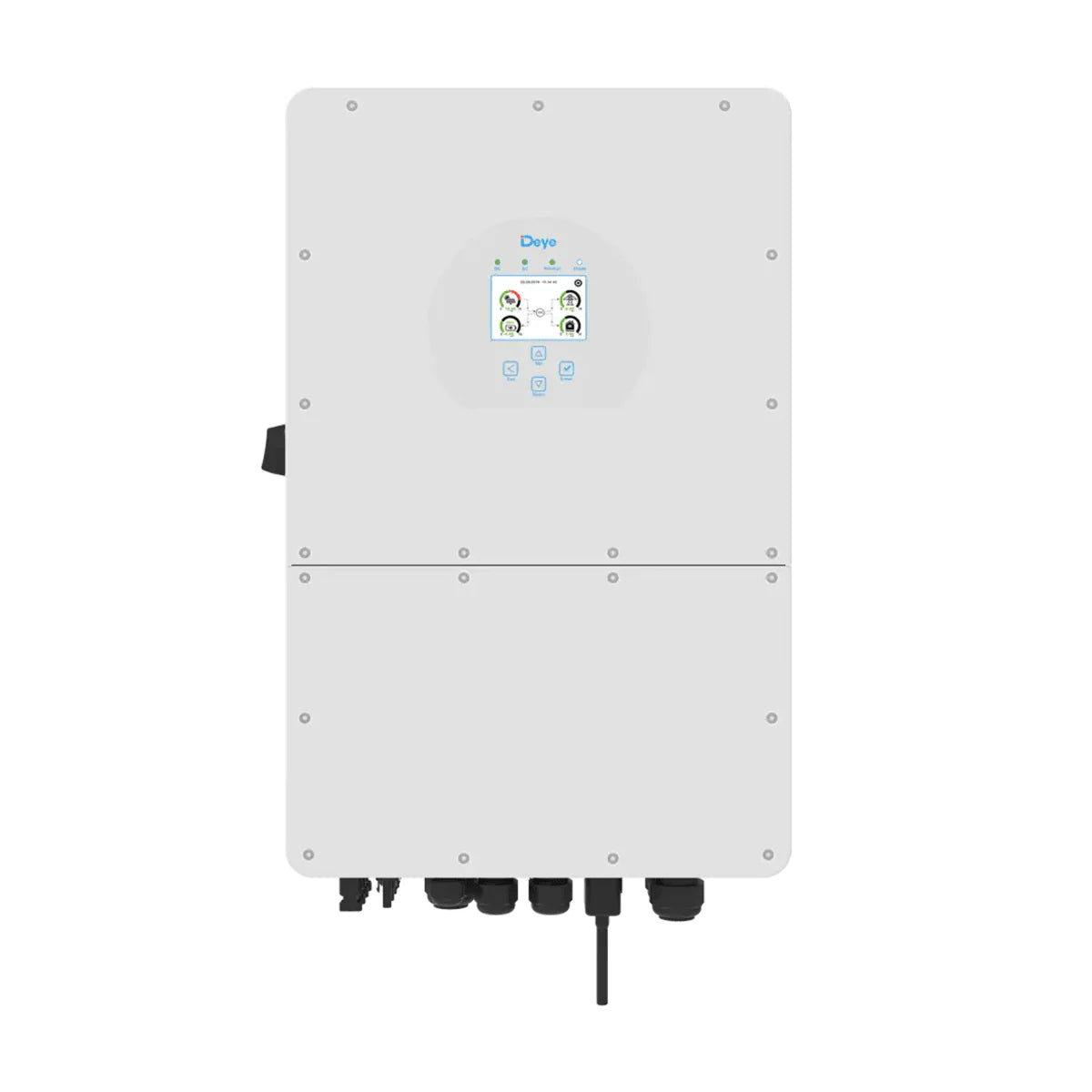

Deye 3 Phase High Voltage Inverter 20KW

Deye 3 Phase High Voltage Inverter 20KW
R 30,490.00 ZAR
R 30,490.00 ZAR

Specifications

Model: SUN-20K -SG01HP3-EU-AM2

Battery Input Data

Battery Type: Lithium-ion
Battery Voltage Range(V): 160-700
Max.Charging Current(A) :37
Max.Discharging Current(A): 37
Charging Strategy for Li-ion Battery: Self-adaption to BMS
Number of battery inputs: 1

PV String Input Data

Max DC Input Power（W: 26000
Max DC Input Voltage（V): 1000
Start-up Voltage（V): 180
MPPT Voltage Range（V): 150-850
Rated DC Input Voltage(V): 600
Max Input Short-Circuit Current（A): 39+39
Max Operating PV Input Current（A): 26+26
No.of MPP Trackers/No.of String Per MPP Tracker: 2/2+2
