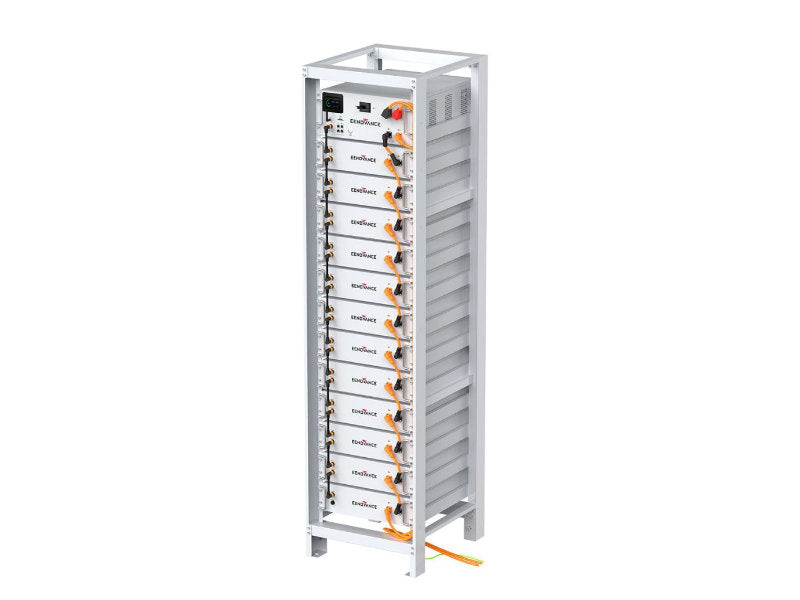

Eenovance Battery 61.44kWh HV 624V

Reliable & Scalable Energy Storage for Large-Scale Installations

The Eenovance 61.44kWh High-Voltage Battery Pack is the ideal replacement for the Sunsynk 61kWh battery banks. Engineered for high performance, long lifespan, and seamless integration, this modular battery system is perfect for commercial, industrial, and large residential solar storage applications.

Each 5.12kWh battery module is designed for maximum efficiency, supporting up to 12 modules in series, delivering a total 61.44kWh energy capacity. This ensures unmatched reliability and scalability, with the ability to parallel up to 16 stacks, reaching an impressive 983.04kWh storage capacity.

 Key Features & Benefits:
 High-Power 1C Rated Battery – Supports continuous 61.44kW charge/discharge power
 Modular & Expandable – Scale from 3 to 12 battery modules per stack (61.44kWh total)
 Parallel Up to 16 Stacks – Massive scalability, reaching up to 983.04kWh
 90% Depth of Discharge (DoD) – Optimized for long-lasting efficiency
 Intelligent Touchscreen Interface – Easy monitoring & management
 Rack-Mount Design – Quick and hassle-free installation
 Advanced Safety & Reliability – Designed with Lithium Iron Phosphate (LiFePO4) technology
 10-Year Standard Warranty – Guaranteed long-term performance

 What’s Included in the Package?
 12 x Eenovance 5.12kWh Battery Modules – For a total of 61.44kWh storage
 1 x BMU (Battery Management Unit) – Ensures optimized system performance
 1 x Battery Cabinet – Secure and professional enclosure for the battery system

 Technical Specifications:
Specification Details
Total Energy Capacity 61.44kWh
Charge/Discharge Rate 1C
Max Charge/Discharge Current 100A
Operating Voltage Range 538V – 691V
Battery Chemistry LiFePO4 (Lithium Iron Phosphate)
Operating Temperature Charge: 0~55 ºC / Discharge: -20~55 ºC
System Dimensions 589 × 590 × 2240 mm
Total Weight (12 Modules + Rack) 628 kg
Module Weight 44 – 85 kg
Max Operating Altitude ≤2000m
Relative Humidity 5% – 85% RH
Protection Rating IP20
Certifications EN/IEC 61000-6, IEC 62619, UN38.3
 Why Choose the Eenovance 61.44kWh Battery?
 Future-Proof & Scalable – Easily expand your energy storage capacity.
 Optimized for Solar & Hybrid Inverters – Compatible with high-voltage energy storage systems.
 Advanced Battery Management System (BMS) – Ensures safe and efficient operation.
 Designed for Reliability – Built with premium-grade LiFePO4 cells for extended cycle life.
