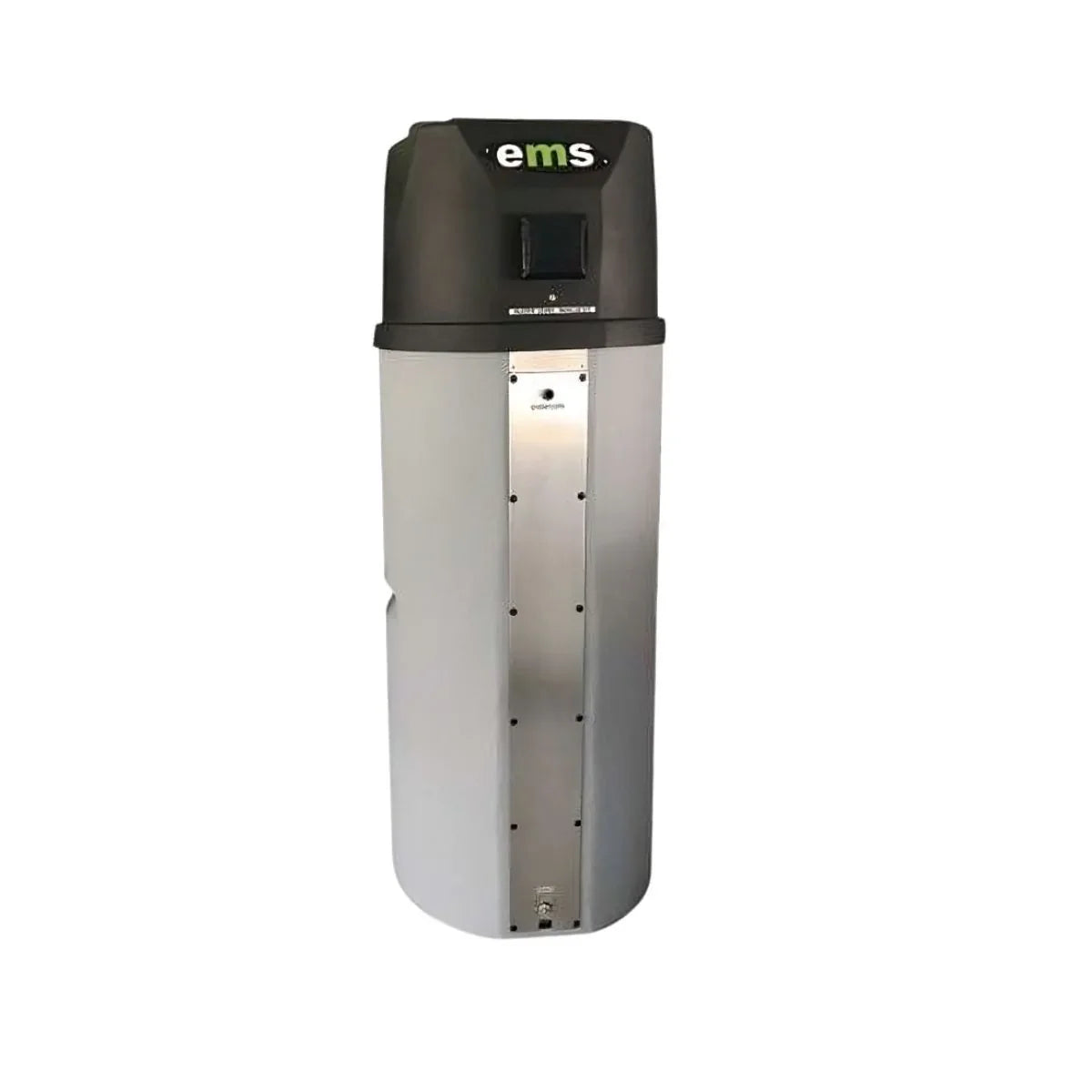

EMS 200L 4.8kW Domestic Integrated Heat Pump

Our Low Pressure Water Heating Solution offers an efficient and eco-conscious way to heat water for residential or commercial use. With advanced heat pump technology and thoughtful design, this unit delivers reliable performance while reducing energy costs.

• Primary heating by heat pump reduces overall energy consumption
• Proprietary Coil Heat Exchanger prevents limescale build-up
• Integrated connection points for optional solar panel integration
• Wi-Fi connectivity for remote monitoring and adjustments
• 2kW traditional heating element available for boosting performance during peak demand or in case of heat pump failure

Technical Information

• Model: EMS THERMAL EMS-TH200DT
• Heating Method: Heat Pump & Element
• Rated Input Power: 0.765 kW
• Rated Heating Capacity: 3 kW
• Rated Current: 3.5 A
• Power Supply: 220 - 240V / 50Hz
• Auxiliary Heater: 2kW Element
• Refrigerant: R-410A
• Water Tank Empty Volume: 220 L
• Water Tank Material: Fibreglass
• Water Inlet/Outlet Connection: 3/4” BSP
• Insulation Thickness: 50 mm
• Water Heating Coil Pressure Rating: 1000 kPa / 10 Bar / 145 psi
• Tank Pressure: Atmospheric
• Water Heating Coil Material: 304 Grade Stainless Steel
• Condenser Coil Material: 316 Grade Stainless Steel
• Max Water Output Temperature: 60°C
• Solar Compatible: Yes (Coming Soon)
• Air Duct Size: 180 mm
• Fan Motor Type: ø190 x 80
• Fan Power Input: 25 W
• Evaporator Size: 400 mm x 355.6 mm x 44 mm
• Height of Water Inlet & Outlet: 1335 mm
• Overall Dimensions (L x B x H): 798 mm x 659 mm x 1781 mm
• Unit Weight: 92 kg
