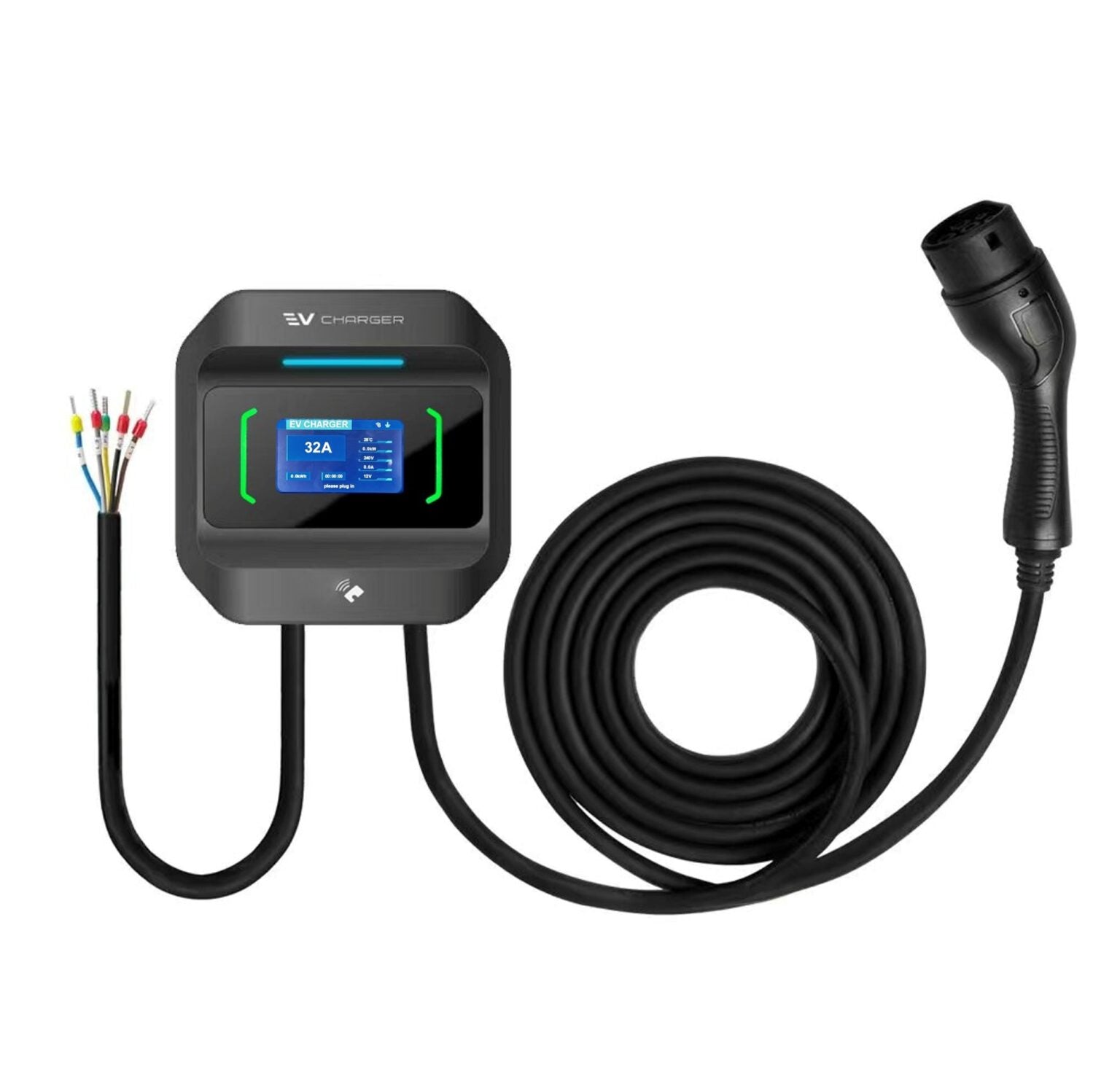

Built with durable materials and compliant with IEC standards it delivers fast, reliable three-phase AC charging up to 22kW. Tuya Smart app control for remote monitoring, scheduling, and energy management. Charge current can be set on the app or manually on the unit.
| Function | Level 2 AC EV Charging Station |
| Modes | Plug and charge, App start, RFID start or schedule |
| Rating | 32 A / 22 kW 3-Phase |
| Voltage | 380 – 480 VAC 50/60 Hz |
| Current adjustment | 6 to 32 A |
| Connectivity | Wi-Fi 2.4 GHz, BT |
| App | Tuya / Smart Life App |
| Cable | 5 m TPU jacket |
| Charge plug | IEC 62196-2 Type 2 |
| Display | 4.3″ LCD + RGB Indicators |
| Enclosure | IP65 weatherproof |
| Standards | IEC 61851 with TUV CE, UKCA, RoHS certification |
| RCD protection | Type B |
| Safety | Leakage current protection, over current protection, ground protection, surge protection, O/U voltage protection, O/U frequency protection, temp protection |
| Controller dimensions | 250 x 250 x 90 mm |
| Material | Polycarbonate |
| Mass | < 6 kg |
| Box dimensions | 350 x 400 x 220 mm |
| Operating temp. | -30° to +55° C |
| Model | VCS-741-22S |
| Included | Manual, 2 RFID cards, wall bracket, screws, plug and cable holder |
