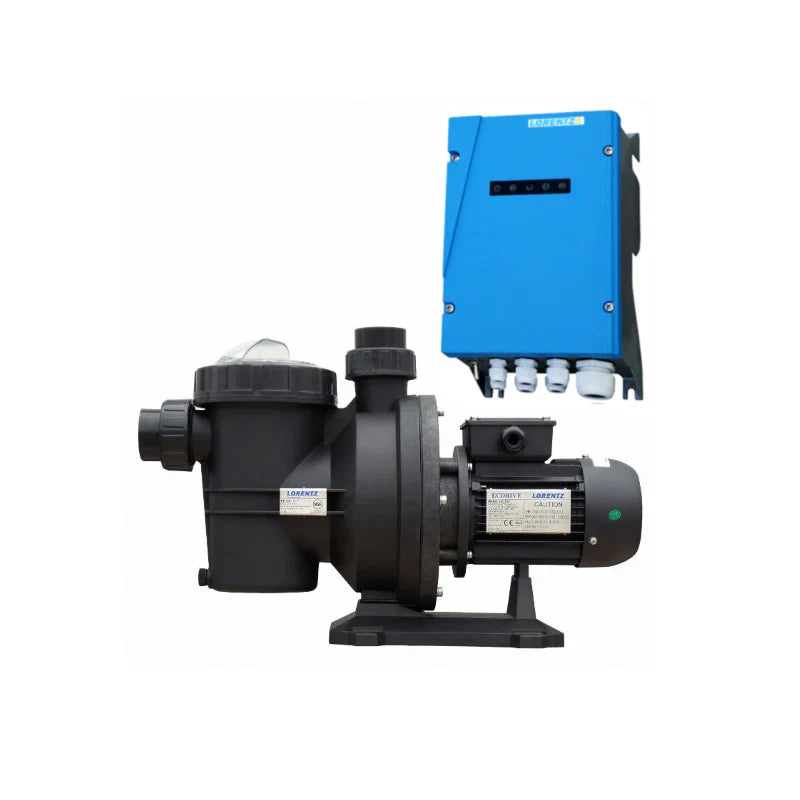

System Overview
- Head max.: 14 m.
- Flow rate max.: 36 m³/h.
Technical Data
Controller PS2-1800
Features
- Controlling and monitoring.
- Control inputs for dry running protection, remote control etc.
- Protected against reverse polarity, overload and overtemperature.
- Integrated MPPT (Maximum Power Point Tracking).
- Battery operation: Integrated low voltage disconnect.
Specifications
- Power max.: 1,8 kW.
- Input voltage max.: 200 V.
- Optimum Vmp**: > 108 V.
- Motor current max.: 14 A.
- Efficiency max.: 98 %.
- Ambient temp.: -40...50 °C.
- Enclosure class : IP68.
Motor ECDRIVE 180 CS-37
Features
- Maintenance-free brushless DC motor.
- Premium materials, stainless steel: AL/AISI 304.
- No electronics in the motor.
Specifications
- Rated power: 1,7 kW.
- Efficiency max.: 92 %.
- Motor speed: 900...3 300 rpm.
- Insulation class: F.
- Enclosure class: IPX4.
Pump End PE CS-17-1
- Non-return valve.
- Premium materials: PP.
- Centrifugal pump.
- Efficiency max. 57 %.
Pump Unit PU600 CS-17-17 (Motor, Pump End)
- Water temperature max.: 60 °C.
- Suction head / Positive inlet head max.: 3m.
Dimensions
- Controller HxWxD = 352 mm x 207 mm x 124 mm; Weight = 6.0Kg.
- Pump Unit HxWxD = 784 mm x 564 mm x 270 mm; Weight = 20Kg.
- Motor Weight = 9.7Kg.
- Pump End Weight = 11.0Kg.
