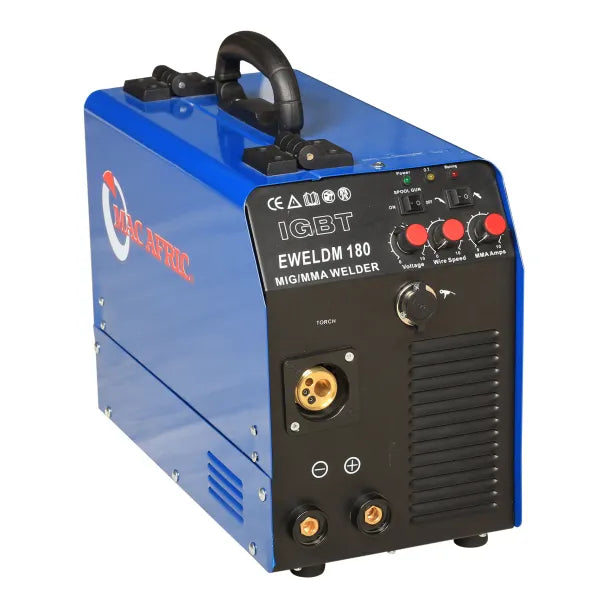

This comprehensive professional 2-in-1 welding machine offers excellent duty cycle and build quality in a smaller, more affordable package. Ideal for both MIG and MMA welding, it combines versatility and efficiency for a wide range of applications.
| Feature | Specification |
|---|---|
| Input Voltage | 230 V @ 50 Hz |
| Rated Input Current | 30 A |
| No-Load Voltage | 55 – 75 V |
| Output Current | 30 – 180 A (MIG / MAG), 15 – 160 A (MMA) |
| Duty Cycle | 180 A / 23 V @ 35% 150 A / 21.5 V @ 60% 120 A / 20 V @ 100% |
| Suitable Wire Diameter | 0.6 mm, 0.8 mm |
| Material | Wire Type | Wire Diameter | Voltage | Wire Speed | Gas Type | Polarity |
|---|---|---|---|---|---|---|
| Mild Steel | ER70S-6 Solid Wire | 0.8 – 1.0 mm | 16–19 V | 5 – 7 | CO₂ or Argon/CO₂ Mix | DCEP (+) |
| Stainless Steel | ER308L Solid Wire | 0.8 – 1.0 mm | 18–20 V | 5 – 6.5 | 98% Argon + 2% CO₂ | DCEP (+) |
| Galvanised Steel | ER70S-6 Solid Wire | 0.8 mm | 15–18 V | 5 – 6 | CO₂ or Argon/CO₂ Mix | DCEP (+) |
| Material | Electrode Type | Rod Size | Amperage | Polarity | Notes |
|---|---|---|---|---|---|
| Mild Steel | E6013 | 2.5 mm | 90 – 100 A | DCEP (+) | All-position, easy to use |
| Mild Steel | E6013 | 3.2 mm | 110 – 125 A | DCEP (+) | For thicker steel |
| Stainless Steel | E308L-16 | 2.5 mm | 85 – 100 A | DCEP (+) | For tanks and pipes |
| Cast Iron | E7018 / ENiFe-CI | 3.2 mm | 100 – 120 A | DCEP (+) | Preheat recommended |
| Material | Wire Type | Wire Size | Voltage | Wire Speed | Gas Type | Polarity | Notes |
|---|---|---|---|---|---|---|---|
| Aluminium | ER4043 / ER5356 | 1.0 mm | 18–22 V | 6 – 8 | 100% Argon | DCEP (+) | Use spool gun mode; keep cable straight |
