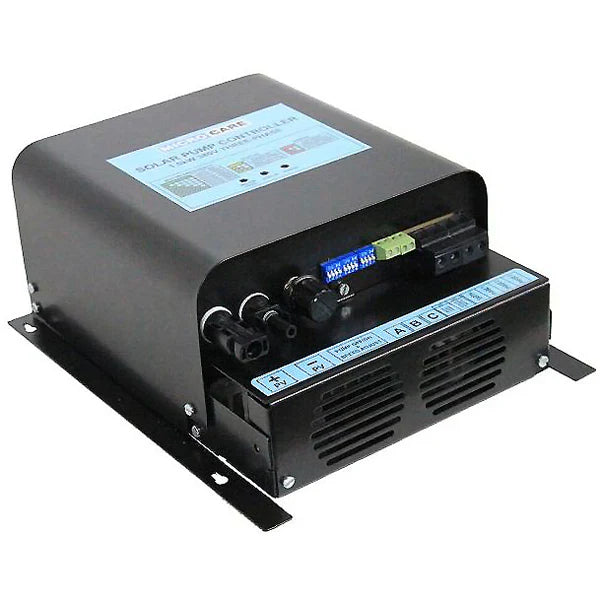

Microcare Portable 5.5kW 380V-220V Solar Pump Inverter

R 10,000.00 ZAR
R 10,000.00 ZAR
Tax included. Shipping calculated at checkout.

Free Shipping & Returns: On all orders

I agree with Terms & Conditions
Wishlist
Compare
Share

Share:

  • Pinterest
  • Instagram
  • Facebook
  • Twitter
https://allforsolar.com/pro...
Thanks! We will send you a notification when the variant becomes available!
Vendor:
Aysa Hardware
Availability:
In stock
Category:
Microcare Portable 5.5kW 380V-220V Solar Pump Inverter

Microcare Portable 5.5kW 380V-220V Solar Pump Inverter
R 10,000.00 ZAR
R 10,000.00 ZAR

Features
 • Surge Protection.
 • Input Voltage of 450Vdc - 1000 Vdc.
 • Compatible with any three-phase 380V motors.
 • LED status feedback.
 • High - Low water probes.
 • Float switch input.
 • Trip and restart controls.
 • Built in Variable Speed Drive (VSD).
 • Unique overdrive feature allows lower PV Voltage operation.
 • IP44 rated.
 • No external enclosure box required.
 • Cost effective installation.

Technical
 • Model - 5.5kW/380V Three-Phase.
 • PV Voc Range - 600V - 850V.
 • PV Vmp Range - 450V – 650V.
 • Recommended PV Vmp (Max Efficiency) - 550V.
 • Rated Output Power - 5.5kW.
 • Frequency Range - 5Hz - 65Hz (Programmable).
 • Ambient Temp Range - 0 - 40ºC.
 • Protection - Overload, Short Circuit, Over Temperature, Under Voltage, Over Voltage, Surge Protection.
 • Dimensions (H x W x D) - 285mm x 240mm x 120mm.
 • Warranty - 1 year.
