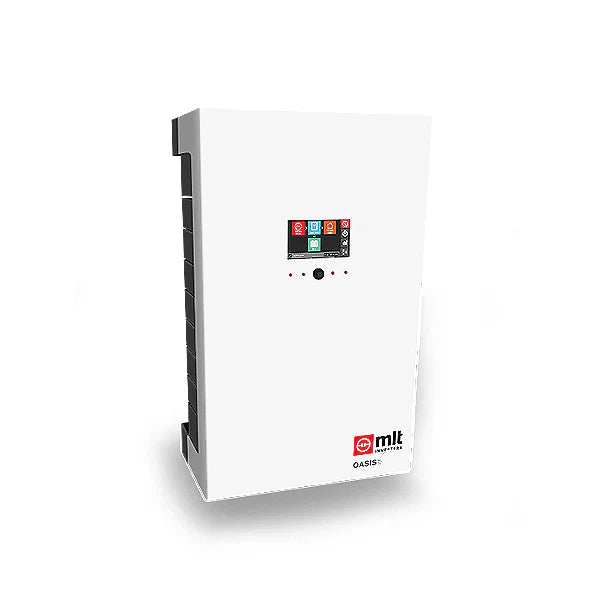

MLT PowerStar 10.0H 8kW 48V Hybrid Inverter

Features

• Designed for harsh environments.
• Parallel Operation (Multiple inverter can be paralleled).
• Single phase transformer-based.
• Low-voltage DC (48 V).
• NRS097-2-1:2017 Compliant.
• Built in CAN port for communication with a BMS.
• Built in remote monitoring.
• Automatic Generator start.
• SmartLoad prioritization.
• Export Power control.

Technical Specifications
AC Parameters

• Inverter Rated Power* (Continuous / 30 minutes): 8000 W / 10000 W.
• Voltage: 230 V (184 V to 276 V).
• Frequency: 50 Hz (47 Hz to 58 Hz).
• Source Current Input: 63 A.
• Load Current Output: 63 A.
• Inverter Current (Continuous / 30 minutes / 2 s): 35 A / 45 A / 80 A.
• Inverter Power factor range: +1 to -1.

DC Parameters

• Input Voltage: 48 V (42 V to 63 V).
• Rated Input Current** (battery discharge current): 190 A.
• Rated / Max Output Current** (battery charge current): 155 A / 190 A.

General

• Protective Class: I.
• Ingress Protection: IP20.
• Operating Temperature: −5°C to 45°C.
• Relative Humidity: 5% to 85%.
• Cooling: Forced
• Tare losses (No Load / Standby): < 60 W / < 8 W.
• Maximum altitude for rated power: 1000 m above sea level.
• Supported battery types: Lead Acid, LiFePO4 with CAN BMS.
• Minimum battery size: 250 Ah.

Mechanical

• Wall-mounted
• Dimension (W × H × D): 450 mm × 730 mm × 220 mm
• Weight: 95 kg.
• Battery Connections (External / Internal): 2 × M40 Glands / 2 × M8 Studs.
• Internal Battery Fuse: 300 A.
