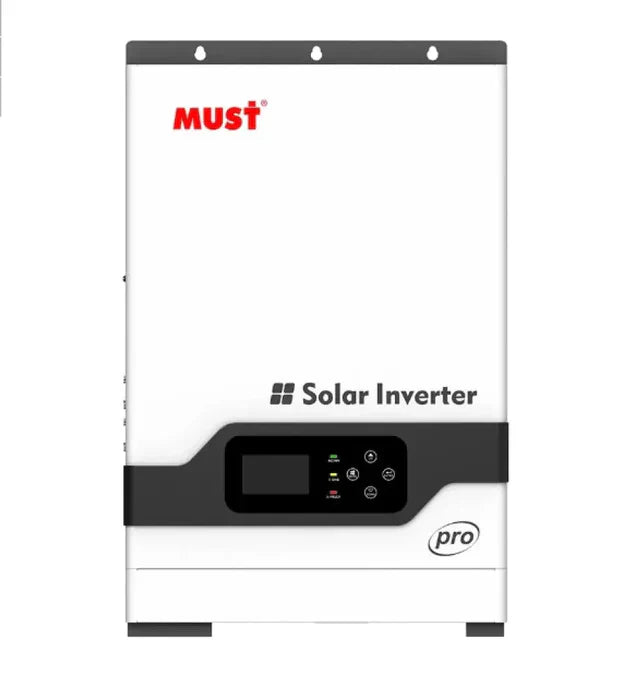

Must 5.2KVA 5000w Pro 100A MPPT Hybrid Inverter (PV18-5248 PRO)

PV1800PRO is a multi-function inverter/charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support in portable size. PV1800 PRO Series can run without battery. The Maximum PV array open circuit voltage can reach 450V and MPPT voltage is 150~430Vdc, which Can help customers make full use of solar energy.

You can choose which priority you want to charge your loads / battery whether it Solar or Grid or both

Features:
– Pure sine wave output
– Smart LCD setting (Working modes, Charge Current, Charge Voltage, etc).
– Built-in MPPT solar charge controller
– MAX PV Array Open Circuit Voltage: 450V
– Can provide the power to the load without battery
– Combining solar system, AC utility, and battery power source to supply continuous power
– Overload, short circuit and Deep discharge protection
– Cold start function
– Support USB, RS485 monitoring function
– WIFI remote monitoring (Purchase WIFI Dongle Separately)

Model Name: PV1800
MD:PV18-5248 PRO

off-grid Mode
Rated Power:5200VA/5200W
DC Input:48VDC, 135A
AC Output:230VAC, 50/60Hz,22.6A

AC Charger Mode
AC Input:230VAC, 50/60Hz,35A
DC Output: 48VDC,80A(Max)

PV INPUT
Rated Power: 6000W
Max Charger:100A
Nominal Operating Voltage:360VDC
Max.Solar Voltage(Voc):450VDC
MPPT Voltage Range: 150-430VDC
Max PV Current:27A

Dimensions : L 62cm X W 42cm X H 29cm

What’s in the box
1 x Inverter
1 x User Manual
