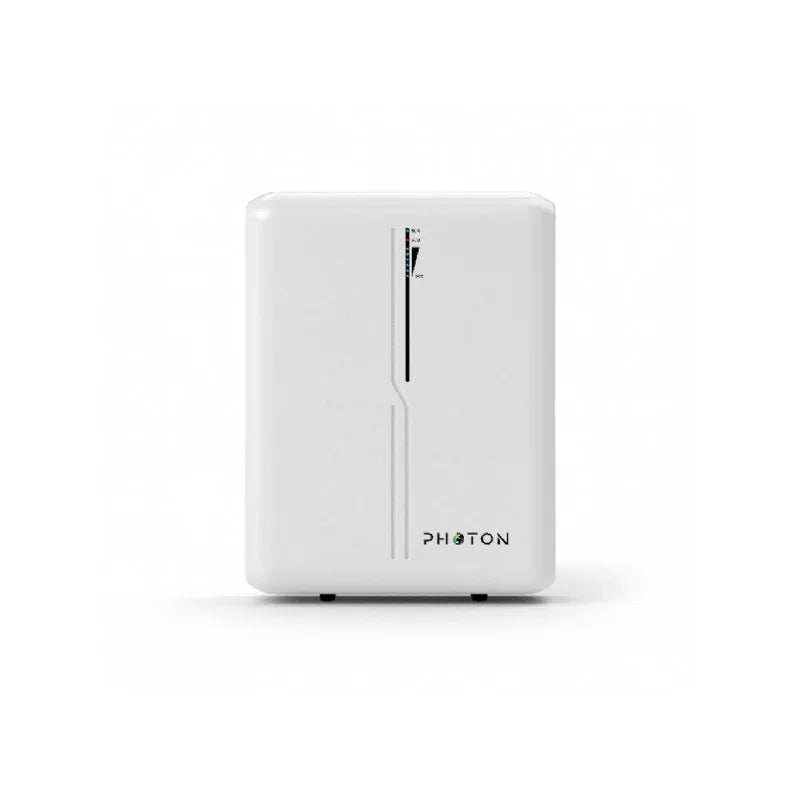

Photon 5.12kWh Battery 51.2V Wall Mount (300A Busbar)

R 19,568.00 ZAR
R 19,568.00 ZAR
Tax included. Shipping calculated at checkout.

Free Shipping & Returns: On all orders

I agree with Terms & Conditions
Wishlist
Compare
Share

Share:

  • Pinterest
  • Instagram
  • Facebook
  • Twitter
https://allforsolar.com/pro...
Thanks! We will send you a notification when the variant becomes available!
Vendor:
All For Solar
Availability:
In stock
Category:
Photon 5.12kWh Battery 51.2V Wall Mount (300A Busbar)

Photon 5.12kWh Battery 51.2V Wall Mount (300A Busbar)
R 19,568.00 ZAR
R 19,568.00 ZAR

PHOTON BATTERY

  • CELL TYPE: Lithium Ion Phosphate LifePO+
  • CAPACITY: 5120Wh
  • NOMINAL VOLTAGE: 51.2 Vdc
  • NOMINAL CHARGE/DISCHARGE CURRENT: 50A
  • MAX CHARGE/DISCHARGE CURRENT: 100A
  • SHORT CIRCUIT CURRENT: 350A
  • DIMENSIONS:  460 x 161 x 614mm
  • WALL OR FLOOR MOUNTED
  • MAX 15 UNITS IN PARALLEL
  • WEIGHT: 47kg

ADDITIONAL FEATURES

The Photon has built-in BMS (Battery Management System), which can manage and monitor cells information including voltage, current and temperature. Besides that, BMS can balance cells charging to extend cycle life. BMS has protection functions including over-discharge, over-charge, over-current and high / low temperature; the system can automatically manage the charge state, discharge state, and balance state.

Multiple PTN-BAT-05K-WM-LFP can be connected in parallel to expand capacity and power, and 15 PTN-BAT-05K-WM-LFP can be connected in parallel at most.

storage.

Distributor Warranty Details

Photon offers a 10-year warranty on this product
