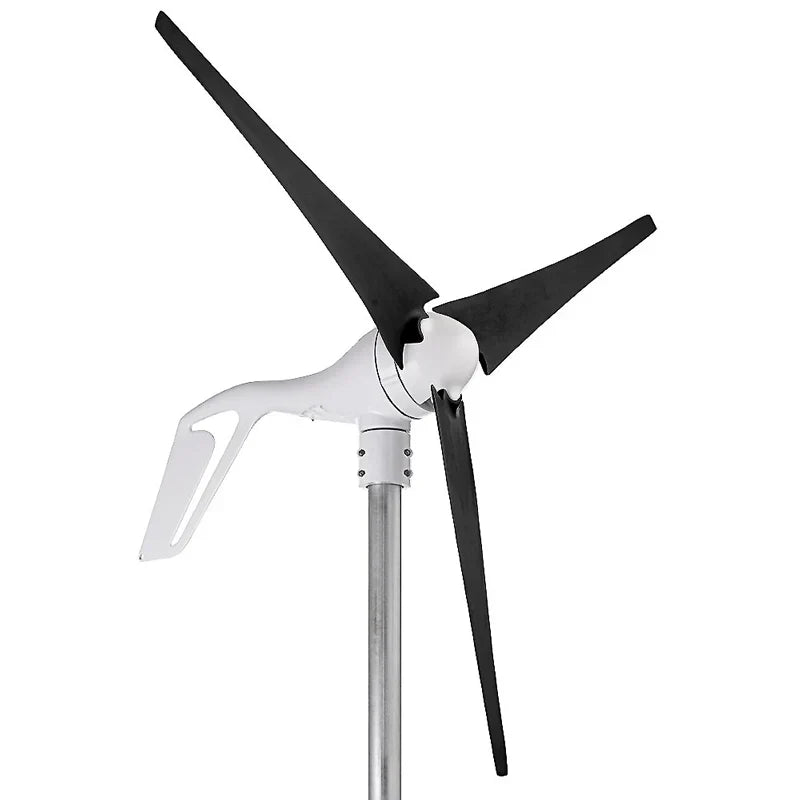

AIR Technical Specifications
- Model: AIR 30.
- Energy Approx.: 30 kWh/mo at 5.5m/s.
- Swept Area: 1.07 m2.
- Weight: 6 kg.
- Rotor Diameter: 1.17 m.
- Start Up Wind Speed: 3.6 m/s.
- Kilowatt Hours/month 30 kWh/month @ 5.4 m/s average wind speed.
- Maximum Wind Speed: 49.2m/s.
- Rated Power 400 watts @ 12.5 m/s wind speed.
- Voltage: 12, 24 and 48 VDC.
- Turbine Controller: Microprocessor-based smart controller.
- Blades: (3) Injection-moulded composite.
- Overspeed Protection: Electronic torque control.
- Mount: 38 mm schedule 40 pipe 48 mm outer diameter.
- Shipping Dimensions: 686 mm x 318 mm x 229 mm and 7.7 kg.
- Optimum Wind Speed Range: 11-15 m/s.
- Alternator: Permanent magnet brushless.
- Body: Permanent mould cast aluminium.
- Certifications: CSA, CE.
Voltage Regulation Set Point (factory setting)
- 12 Volt Systems: 14.1 Volts.
- 24 Volt Systems: 28.2 Volts.
- 48 Volt Systems: 56.4 Volts.
Regulator Adjustment Range
- 12 Volt Systems: 13.6 to 17.0 Volts (approximately).
- 24 Volt Systems: 27.2 to 34.0 Volts (approximately).
- 48 Volt Systems: 54.4 to 68.0 Volts (approximately).
